KT200 ECU Programmer supports ECU maintenance chip tuning, removing DTC codes, OBD/BOOT/BDM/JTAG & multiple protocols. This is a guide on how to do a self-test with KT200 + Bench Box.
1. Connect KT200 & BENCH BOX to PC.
2. Start KT200 software:
Select driver >> BENCH MODE >> TOOLS BENCH MODE >> TEST for BENCH BOXES >> TEST BENCH BOX V.2 >> INFO
Here you can check the operation notice.
This driver is useful for testing the Bench Box V.2
During the test:
- the relays will be triggered at different speeds.
- the read LED will flash several time
...
Before launching the driver, connect the Bench Box V.2 to the tool and power it through the round jack of the bench box itself or from the round jack of the DFOX tool.

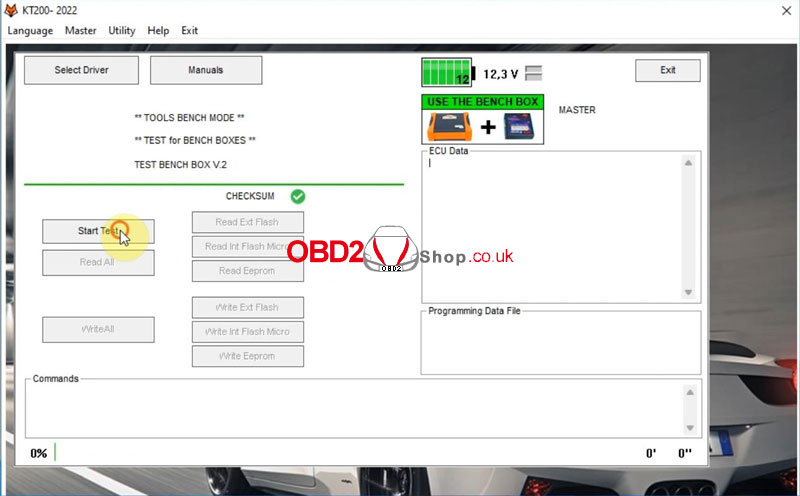

3. OK >> Start Test
KT200 will start reading automatically...
Connect Bench Box without ECU and power it, click "OK".
Wait processing until 100%.

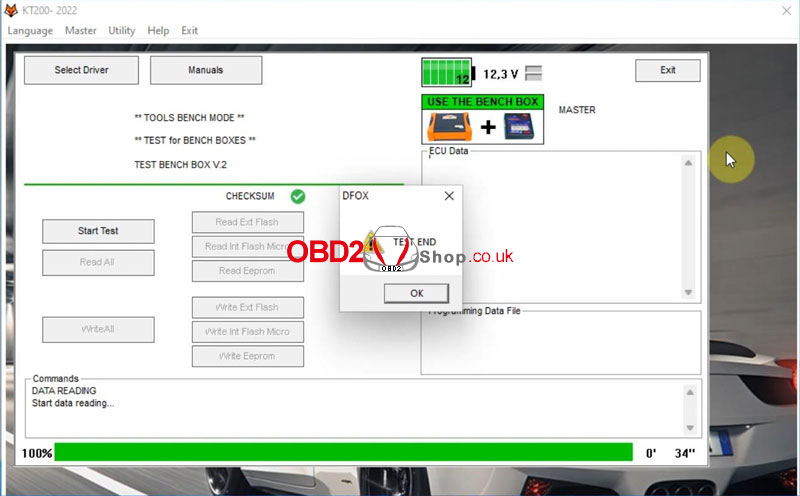

Test End.
Completed.
